Description
Stainless steel Bimetal thermometer is a kind of measurement in the field of low temperature test instrument. Bimetallic thermometer can be directly measured in the process of various production - 80 °C ~ + 500 °C within the scope of liquid, steam and gas medium temperature.
The scene display temperature, intuitive and convenient; Safe and reliable, long life;
Many kinds of structure forms, can meet different requirements.
Bimetal thermometer is based on the ring around the made of bent bimetallic strip, when the bimetal thermometer one end of the expansion when heated, put in motion pointer rotation, the instrument will show should value.
Specification
Case: stainless steel 304
Dial: Dia.50mm, 63mm, 80mm, 100mm
Bezel: crimped or bayonet
Window: glass
Accuracy: 2.5%
Measuring Range: -40+60℃, 0-100℃, 0-120℃, 0-150℃ or other
Bulb length: 100mm, 120mm, 150mm, 200mm with dia.8mm in stainless steel
Thread: 1/2"BSP Fixed thread, loose thread, 3 pcs/set sliding union in st.st. or other sizes on request

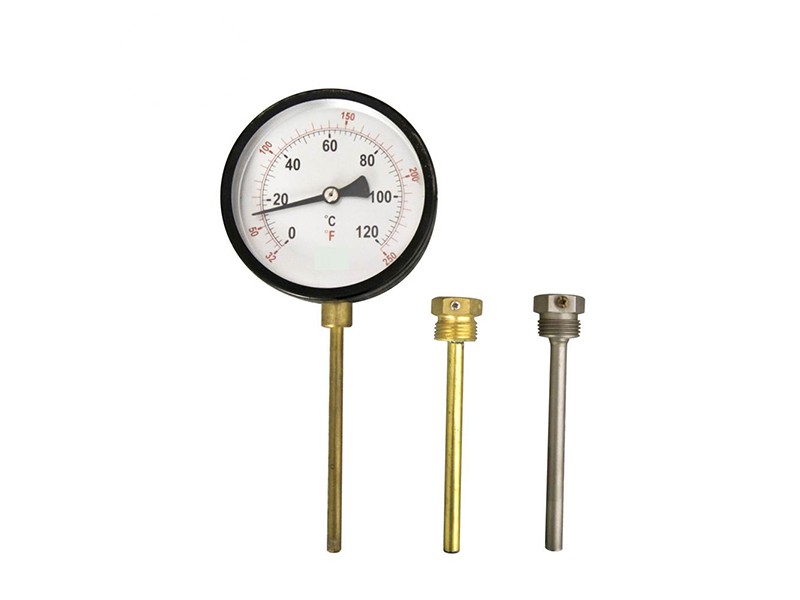

Thermo-well: Length 100mm, 120mm, 150mm, 200mm or other size.
1/2"BSP, 3/8"BSP fixed male thread in st.st

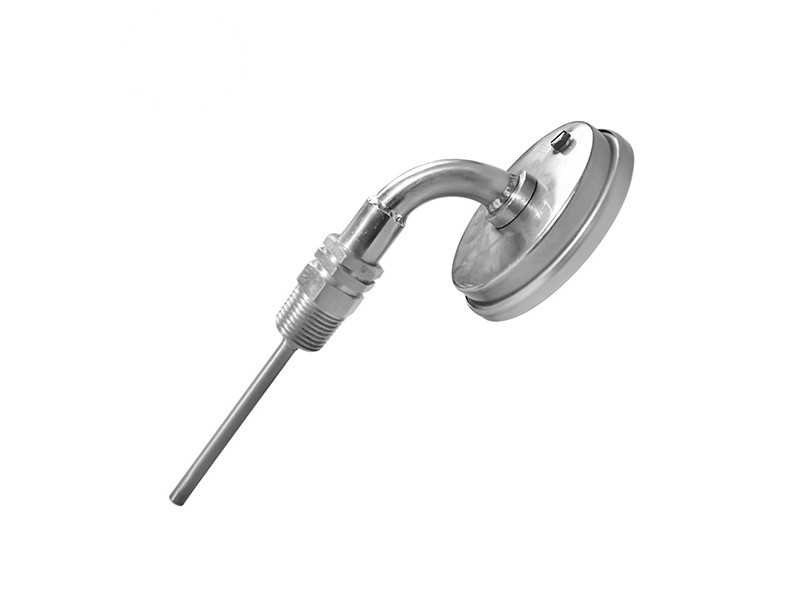

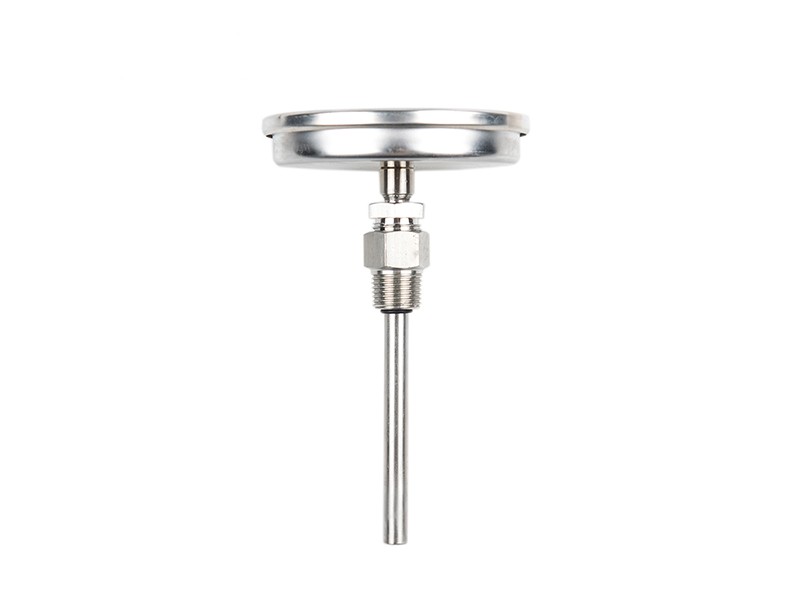

Connection type: BM: bottom connection
BK: central back connection

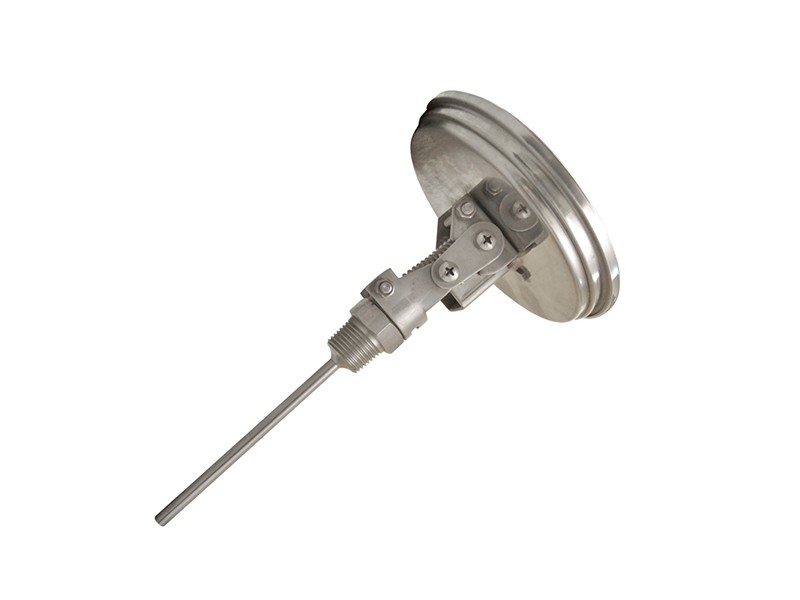

AA: adjustable-angle connection
Application
Process Market:
Offshore Oil Rigs
Chemical and Petrochemical Plants
Water and Wastewater Pressure Control
Pulp and Paper
Refineries
Power
Industrial Market:
General Industrial
HVAC
Equipment Skids
Medical and Life Sciences:
Pharmaceutical / Biotech
Food and Beverage
